MPVC-5B-BLN21V020

Inline Check Valve Cleanroom SKU No. 001040607

Product Overview

5/16 Inch Barbed Inline Check Valve Cleanroom Blue Nylon 21SPF body with 0.02" Viton disk

• Product Series: MPVC

• Body Material: Blue Nylon 21SPF

• Diaghphram Material: 0.020" Viton

• Minimum Order Quantity: 1000pcs

• Leak Decay Tested: 100%, each piece tested

• Flow Tested: Yes, Batch/Lot Tested

• Lot control: Yes

• Laser Marking: No

Order Quantity

100 to 999

1,000 to 4,999

5,000 to 9,999

10,000 to 49,999

50,000+

Loading...

Add to Quote

• Maximum Operating Temprature: 203.00ºF / 95.00ºC

• Minimum Operating Temprature: -30.00ºF / -34.44ºC

• Maximum Operating Pressure: 15 psi (air)

• Cracking Pressure: 0.0 psi (This valve is normally open)

• Required Sealing Back-Pressure: Less than 0.1 psi (tested in air)

The MPVC-5B-BLN21V020 Inline Check Valve Cleanroom is a diaphragm type inline check valve featuring a Blue Nylon 21SPF inlet and a Blue Nylon 21SPF outlet with a 0.020" Viton diaphragm.

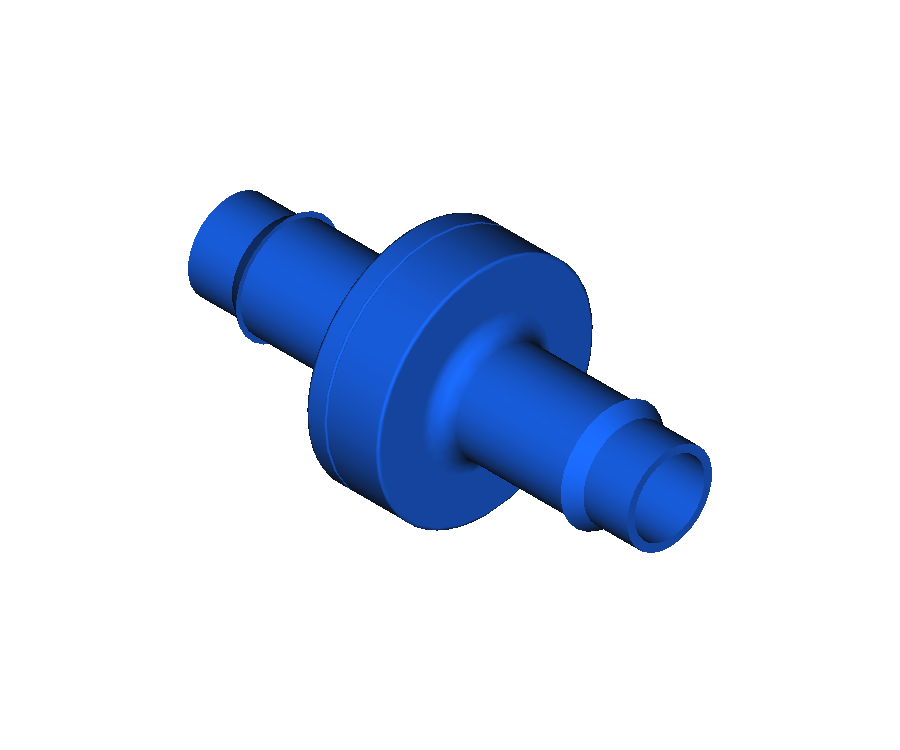

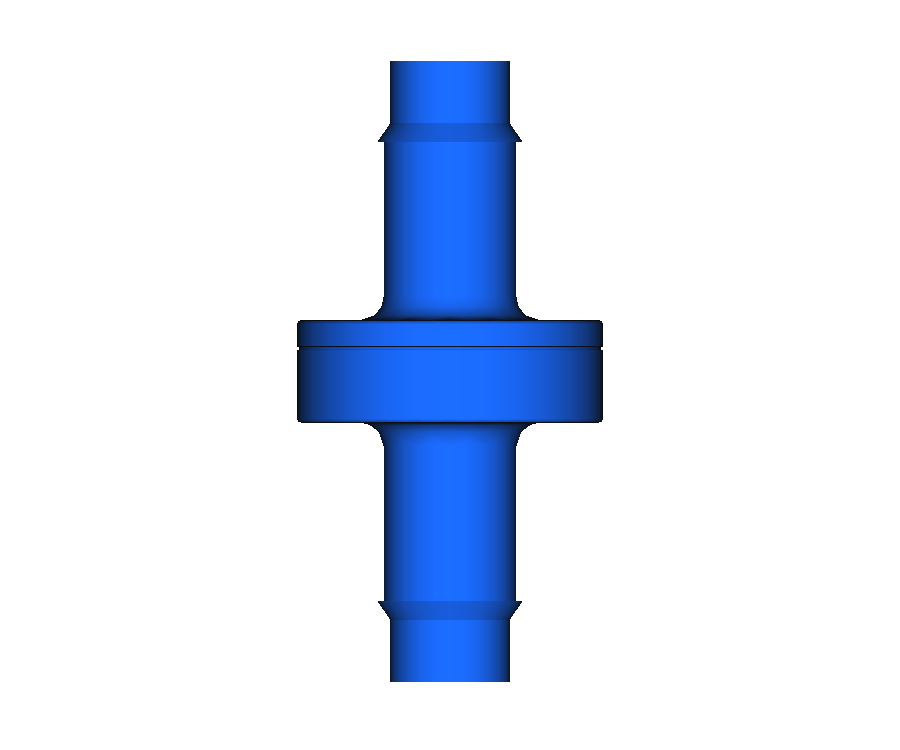

Valve Part Drawing
