3/8 Inch Barbed Inline Check Valve Blue Nylon 21SPF body with Kalrez disk
• Product Series: MPV
• Body Material: Blue Nylon 21SPF
• Diaghphram Material: 0.030" Kalrez
• Minimum Order Quantity: 1000pcs
• Leak Decay Tested: 100%, each piece tested
• Flow Tested: Yes, Batch/Lot Tested
• Lot control: Yes
• Laser Marking: No
100 to 999
1,000 to 4,999
5,000 to 9,999
10,000 to 49,999
50,000+
• Maximum Operating Temprature: 203.00ºF / 95.00ºC
• Minimum Operating Temprature: -30.00ºF / -34.44ºC
• Maximum Operating Pressure: 65 psi (air)
• Cracking Pressure: 0.0 psi (This valve is normally open)
• Required Sealing Back-Pressure: Less than 0.1 psi (tested in air)

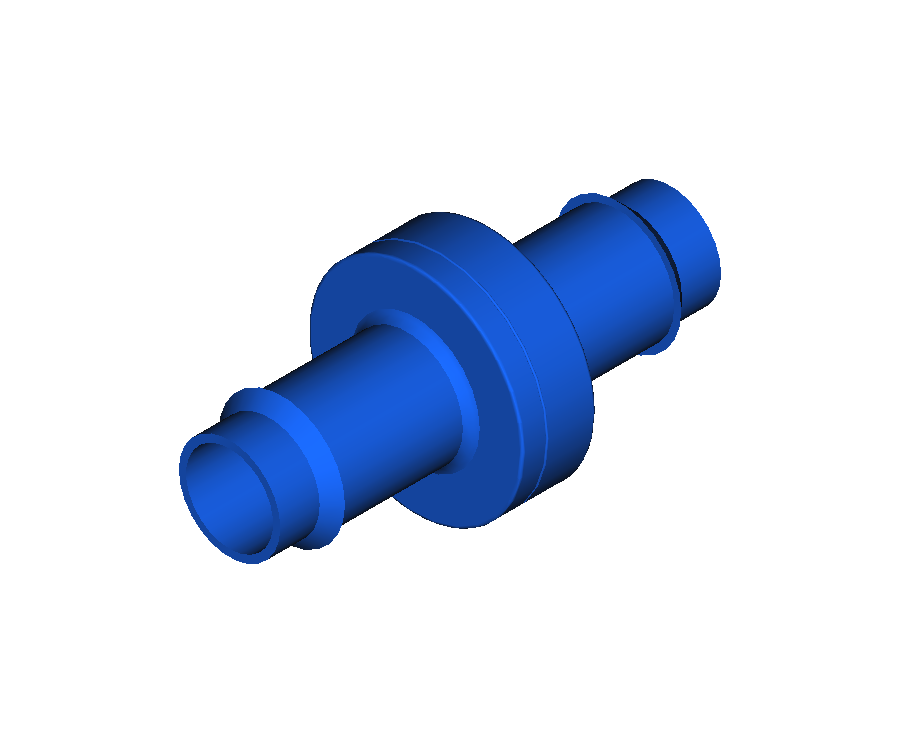

The MPV-6B-BLN21K Inline Check Valve is a diaphragm type inline check valve featuring a Blue Nylon 21SPF inlet and a Blue Nylon 21SPF outlet with a 0.030" Kalrez diaphragm.
