MPV-6B-AK

Inline Check Valve SKU No. 000050203

Product Overview

3/8 Inch Barbed Inline Check Valve Acetal body with Kalrez disk

• Product Series: MPV

• Body Material: Acetal

• Diaghphram Material: 0.030" Kalrez

• Minimum Order Quantity: 100pcs

• Leak Decay Tested: 100%, each piece tested

• Flow Tested: Yes, Batch/Lot Tested

• Lot control: Yes

• Laser Marking: Optional

Order Quantity

100 to 999

1,000 to 4,999

5,000 to 9,999

10,000 to 49,999

50,000+

Loading...

Add to Quote

• Maximum Operating Temprature: 230.00ºF / 110.00ºC

• Minimum Operating Temprature: -40.00ºF / -40.00ºC

• Maximum Operating Pressure: 65 psi (air)

• Cracking Pressure: 0.0 psi (This valve is normally open)

• Required Sealing Back-Pressure: Less than 0.1 psi (tested in air)

The MPV-6B-AK Inline Check Valve is a diaphragm type inline check valve featuring a Natural Acetal Celcon M90 inlet and a Black Acetal Celcon M90 outlet with a 0.030" Kalrez diaphragm.

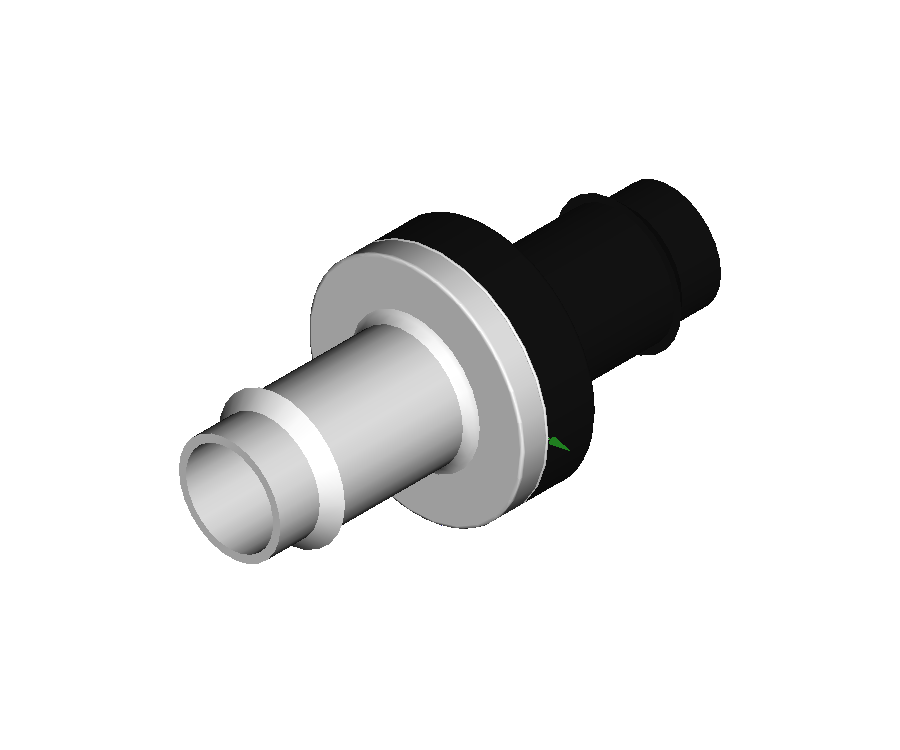

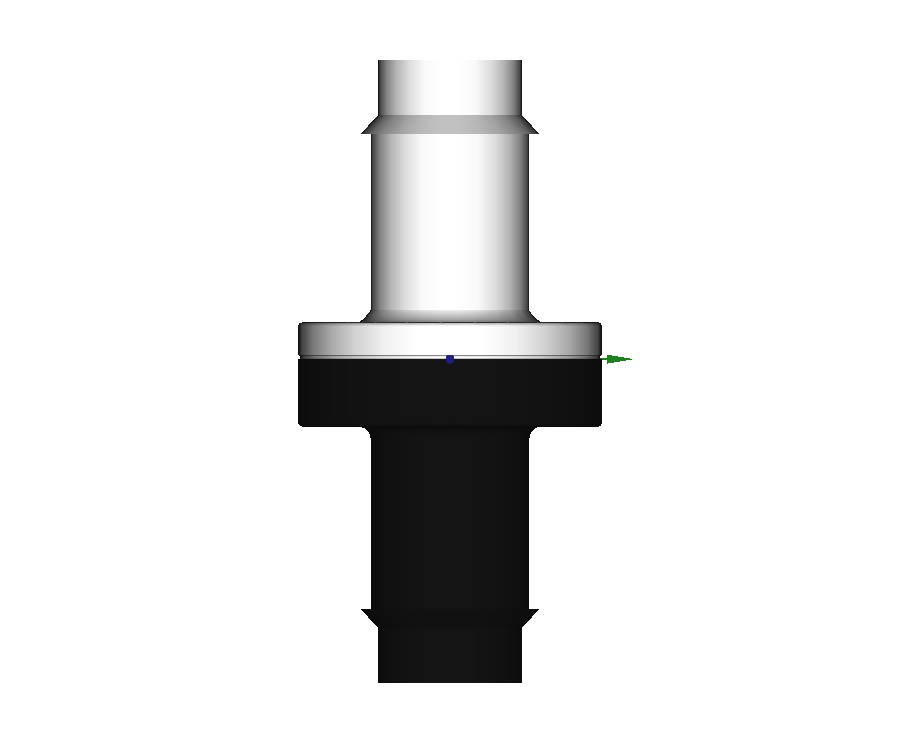

Valve Part Drawing
